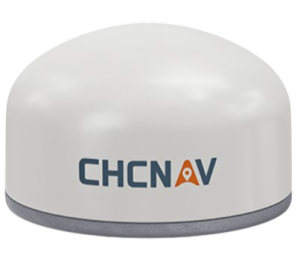

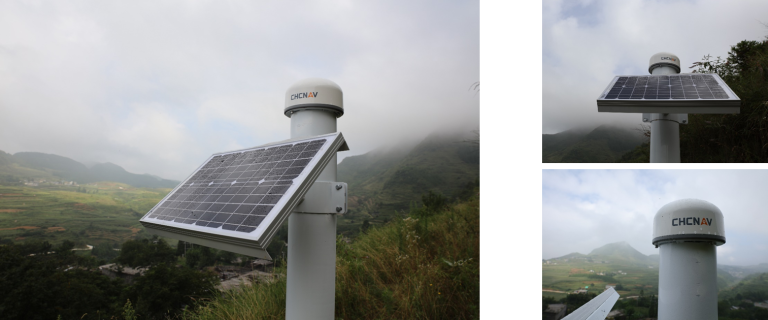

The H3 is a versatile intelligent GNSS receiver designed for monitoring critical infrastructure such as dams, bridges, and landslide-prone areas. It features an advanced antenna design that integrates the GNSS module, low-power interface board, communication modules, and MEMS sensor into a single compact unit. The H3 provides reliable data for both long-term static positioning and dynamic positioning, making it an effective solution for stringent monitoring requirements.

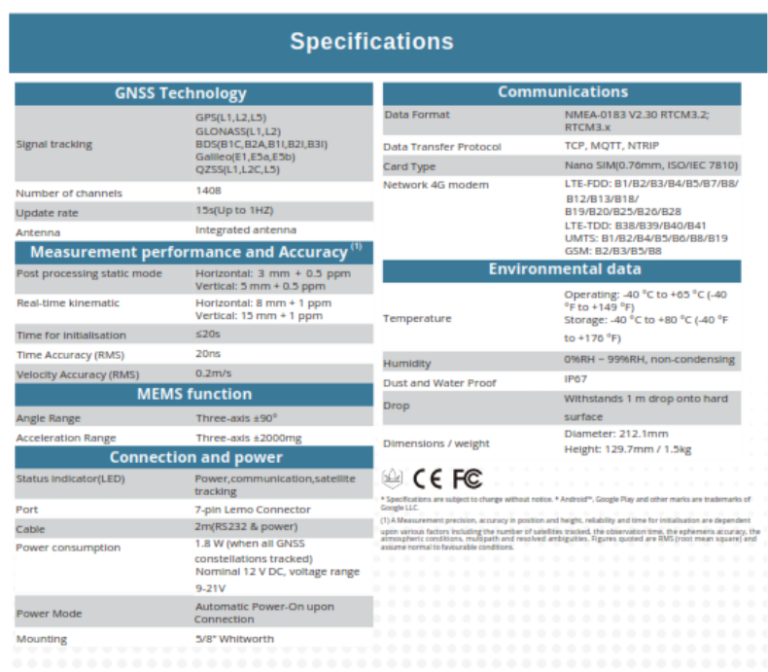

Positioning

  • GNSS : Full GNSS
  • IMU : 3-axis MEMS
  • Precision max. : 0.3 cm H / 0.5 cm V (post processing)

Connectivity

  • Wireless : 4G LTE
  • Ports : RS232

Physical

  • Weight : 1.5 kg
  • Dimensions : 212 x 212 x 130 mm
