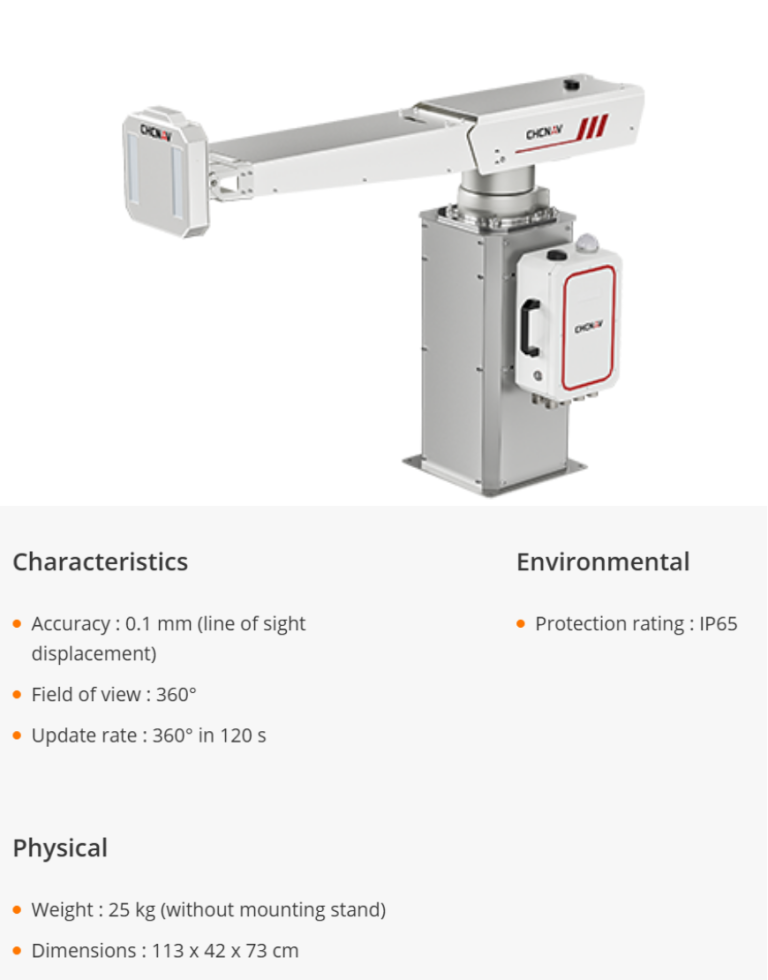

The PS-2000 Multi-point Deformation Monitoring System is designed for high-precision slope stability monitoring. Utilizing differential interferometric measurement and circular synthetic aperture imaging methods, it provides non-contact, all-around monitoring capability with high accuracy and data update rates. Its compact and lightweight design ensures flexible and rapid deployment, making it ideal for applications such as road and railway slopes, open-pit mines, landslides, and hydraulic dams.
HIGHLY ACCURATE, NON- CONTACT MONITORING
The PS-2000 Monitoring System is designed for exceptional accuracy, achieving a level of precision down to 0.1 mm. Its remarkable accuracy is made possible by the application of advanced techniques, including differential interferometric measurement
and circular synthetic aperture imaging. High accuracy is achieved without physical contact with the monitored surface, ensuring precise and reliable data for slope stability and deformation analysis.
The PS-2000 Monitoring System delivers exceptional performance in a lightweight, portable design. The main unit weighs only 25 kg, making it incredibly convenient for mobility and installation. Its high level of protection and rugged construction ensure adaptability to demanding surveillance conditions. Regardless of the environment, it remains a reliable and portable solution for slope stability and deformation monitoring.
PORTABLE AND RUGGED DESIGN
360° MONITORING RANGE
The PS-2000 adopts the third-generation circular arc imaging synthesis technology and integrates a high-precision turntable to achieve aperture synthesis. So it can achieve 360 ° comprehensive scanning and monitoring with the device as the center, no longer affected by the antenna angle, and the monitoring range is greatly increased. Very suitable for open-pit mining and other scenarios, making work more efficient.
The system’s high data update rate ensures that users have access to real-time insight into the
monitored area. Potential problems or changes are identified quickly, enabling timely decision making and risk management.
REAL-TIME DATA UPDATES
